MINI 76 T-RR

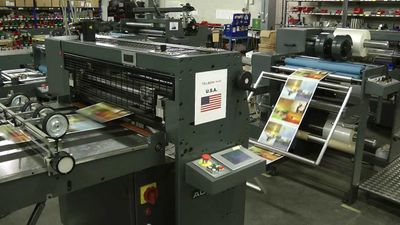

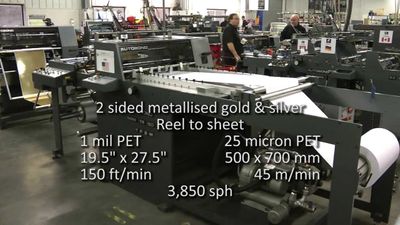

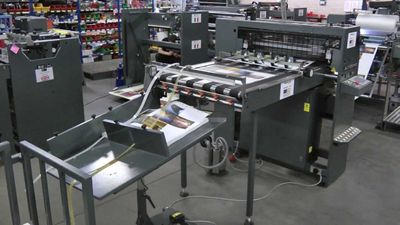

- Autobond offers a wide range of industrial laminating machines. The Autobond Mini 76 T-RR is a web fed thermal laminator, with excellent laminating productivity. This format laminator can run up to a 76cm (30”) wide web at up to 72 meters per minute (237’ per min). It can also be manufactured as optional 100 m/min (300’ per min) version. This laminator utilizes the chassis of Autobond’s most widely distributed sheet fed laminator and adds roll to roll or optional roll to sheet capability. It has a modular design to add options such as a perfector, flying knife cross cutter, or embossing station for linen grain or silver halide photo quality finishes. Please see below for more details on the Mini 76 T-RR thermal laminating machine:
- 1 or 2 sided, web fed, thin film, thermal laminator for medium and long run lengths
- Max Width Specifications: 76cm (30”)
- Max speed: 72 m/min (237ft/min)- optional 100 m/min (300’ per min) available
- 90gsm (60lb text) to 650 gsm (24 pt)
- Quick make-ready
- Easy operation
- Small footprint
- Heavy-duty build quality
Features
Roll Unwind
- 75mm (3”) or optional 150mm (6”) diameter airshaft unwind
- Pneumatically braking tension control
- Feed head processor controlled for accurate under-lap
- Max roll OD 1.2 meter (47”)
Laminator
- Water heated chrome laminating roller
- Digital temperature control up to 135°C (275°F)
- Rubber counter-pressure roller
- Pneumatic nip pressure up to 6 meters tonnes
- Film mounted on a quick-change inflatable air-shaft
- Film roll slitting and perforating mechanisms
- Pneumatic clutch ensures precise film tension
Roll Rewind
- 75mm (3”) or optional 150mm (6”) diameter airshaft rewind
- Motor-driven with pneumatically operated tension control
Optional Features
Perfector
- Sheets are laminated top and bottom in one pass
- Rubber counter-pressure roller becomes water heated
- Additional heated roller, quick-change inflatable air-shaft, and perforating mechanism for 2nd roll of film
Flying Knife Cutter
- Highly accurate, high speed, servo driven flying knife utilizing disc blade cuts web sheet format
- Programmable sheet length in HMI or cut to pre-printed registration mark
Embossing Station
- Additional laminating station with custom pattern emboss roller for silver halide replication for photo and photobook market or linen grain finish for book market
Cross Cutter

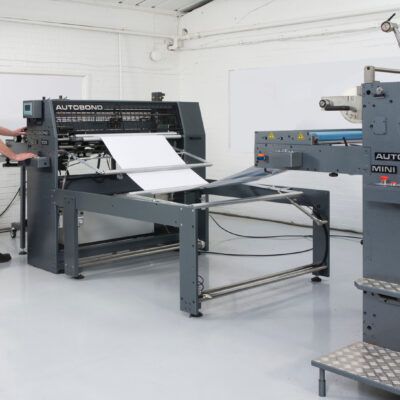

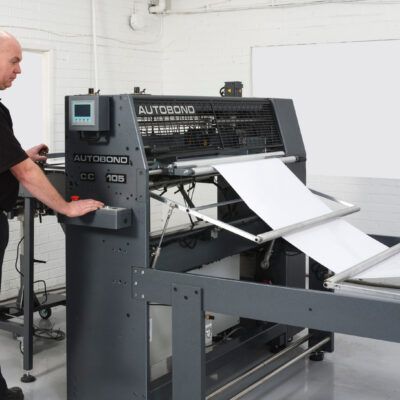

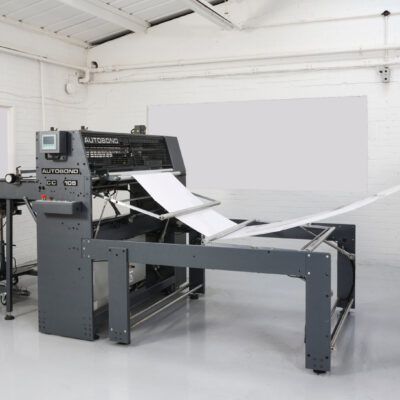

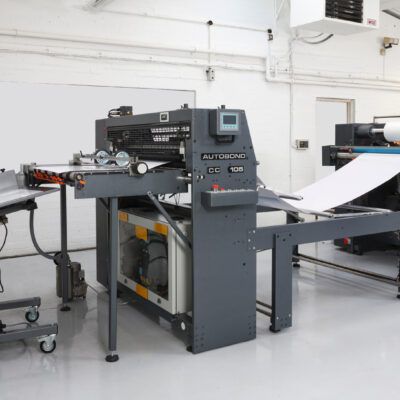

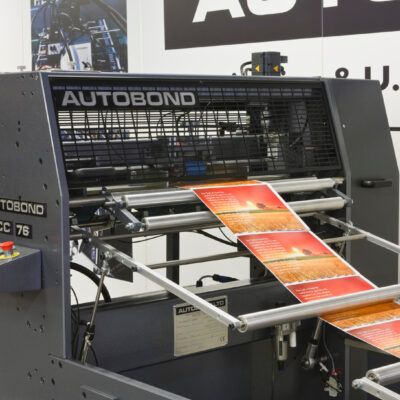

Autobond manufactures the CC 76 and CC 105 flying knife separators as an option to add to any Autobond thermal laminating machine for separation of nylon and polyester (PET) films. They can also be built mechanically and electrically stand alone to run in-line with other manufacturer’s laminating equipment. With sophisticated laser sensors and servo motors, the Autobond flying cross cutter range can run at up to 200’ per minute for high speed separation of the laminated web with pin point accuracy. Please see below for more details on the Autobond CC 76 and CC 105 flying knife cross cutters.
- Automatic separation by blade of film and/or print
- In-line with laminator or off-line with reel unwind
- Max speed: 60 m/min (200 ft/min)
- 115 gsm (80 lb text) to 650 gsm (24 pt)
- Servo driven flying knife
- Available at 76 cm (30”) wide or 105 cm (41”) wide
- Separation of thin film, thick film, and/or print
- Cut made to registration mark or to under-lap
- Single cut flush work or double cut tab work
- Integral in-line with Autobond laminator or stand-alone in-line with other makes of laminators
- Unwind mechanism allows separation of pre-laminated reel of sheets, or reel of print, cut to a programmed length
- Learn more about Autobond’s cross-cutting machine and how it can optimize production by contacting us.
