Sheet to Sheet Products

Autobond Laminators

Autobond overs a vast range sheet to sheet laminating solutions. We can accomodate sheet sizes ranging from 32 x 22.5 cm (12.5” x 9”) up to 106 x 106 cm (41.73” x 41.73”), however if this impressive range still doesnt suit your use case feel free to reach out to discuss a custom solution.

FEEDER

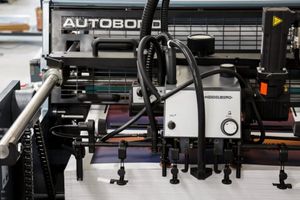

Heidelberg Speedmaster feed head
Rising pile, back separation, stream feeder
Feed head processor controlled for accurate under-lap
Max pile height of 1.2 m (47”)

SUCTION DRUM FEEDER

Heidelberg-Stahl suction drum
Bottom separation, continuous run, top-loading
Air inflates the sheets from the sides, allowing them to float on a bed of air
Operator replenishes sheets on the run, thus providing continuous feed

Laminator

Water-heated chrome laminating roller
Digital temperature control up to 135°C (275°F)
Rubber counter-pressure roller
Pneumatic nip pressure up to 6 metres tonnes
Film mounted on a quick-change inflatable air-shaft
Film roll slitting and perforating mechanisms
Pneumatic clutch ensures precise film tension

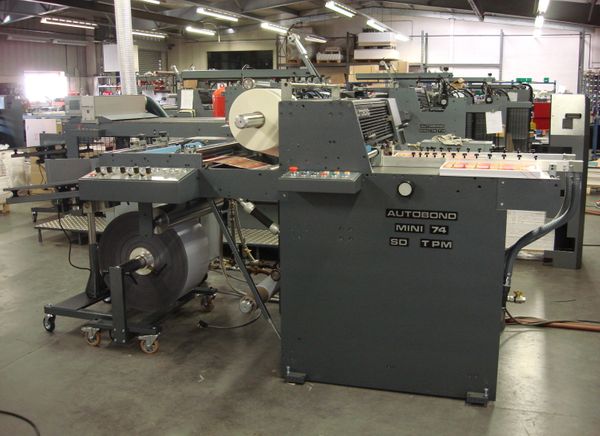

Mini 74 SD T

Autobond offers a wide range of heat laminators. The Autobond Mini 74 SD-T is a quick make ready, extremely versatile thermal laminator. This format laminator can run up to 74cm x 74cm (29” x 29”). It has a modular design to add options such as a perfector, in-line spot UV coating, or an in-line foiling machine. Please see below for more details on the Mini 74 SD-T thermal laminating machine.

1 or 2 sided, sheet fed, thin film, thermal laminator for short and medium run lengths
Max sheet size: 74 x 74 cm (29” x 29”)
Min sheet size: 32 x 22.5 cm (12.5” x 9”)
Max speed: 45 m/min (150 ft/min)
150 gsm (100 lb text) to 650 gsm (24 pt)
Quick make-ready
Easy operation
Small footprint
Heavy-duty build quality

Sheeter

Integral bump/burst separator runs in-line
Features include adjustable pro-active, anti-curl bar, secondary perforating mechanism, and in-feed hold rollers with pneumatic clutch to maintain web tension
Delivery into vibrating wheeled jogger table with under-sheet adjustable air control

STACKER

Descending pile delivery
Vacuum belt frame table for single sheet or shingle sheet transfer
Anti-static bar and additional operating touch screen

Optional Features

Perfector

Sheets are laminated top and bottom in one pass
Rubber counter-pressure roller becomes water-heated
Additional heated roller, quick-change inflatable air-shaft, and perforating mechanism for 2nd roll of film

Cross Cutter

Autobond manufactures the CC 76 and CC 105 flying knife separators as an option to add to any Autobond thermal laminating machine for separation of nylon and polyester (PET) films. They can also be built mechanically and electrically stand alone to run in-line with other manufacturer’s laminating equipment. With sophisticated laser sensors and servo motors, the Autobond flying cross cutter range can run at up to 200’ per minute for high speed separation of the laminated web with pin point accuracy. Please see below for more details on the Autobond CC 76 and CC 105 flying knife cross cutters.

Automatic separation by blade of film and/or print

In-line with laminator or off-line with reel unwind

Max speed: 60 m/min (200 ft/min)

115 gsm (80 lb text) to 650 gsm (24 pt)

Servo driven flying knife
Available at 76 cm (30”) wide or 105 cm (41”) wide
Separation of thin film, thick film, and/or print
Cut made to registration mark or to under-lap
Single cut flush work or double cut tab work
Integral in-line with Autobond laminator or stand-alone in-line with other makes of laminators
Unwind mechanism allows separation of pre-laminated reel of sheets, or reel of print, cut to a programmed length

Magnet

Lamination of PSA magnet roll onto bottom of sheets
Cantilevered air-shaft for quick mounting of magnet roll
Inflatable air-shaft for automatic take-up of release liner backing paper

Autobond’s world-class, high-speed laminating machines provide unbeatable high-quality results and consistent performance for decades of use. Visit one of our distributors or contact us to invest in your business with an Autobond lamination machine.

Mini 76 TH

Autobond offers a wide range of commercial laminating machines. The Autobond Mini 76 TH is a quick make ready, extremely versatile thermal laminator, with excellent laminating productivity. This format laminator can run up to B1+ (29.5” x 41.73”) in portrait orientation. It is Autobond’s most widely distributed laminator worldwide. It has a modular design to add options such as a perfector, stacker, in-line spot UV coating, or an in-line foiling machine. Please see below for more details on the Mini 76 TH thermal laminating machine.

1 or 2 sided, sheet fed, thin film, thermal laminator for medium and long run lengths
Max sheet size: 76 x 105 cm (29.5” x 41.73”)
Min sheet size: 28.5 cm x 32 cm (11.5” x 12.5”)
Max speed: 60 m/min (200 ft/min)
115 gsm (80 lb text) to 650 gsm (24 pt)
Quick make-ready
Easy operation
Small footprint
Heavy-duty build quality
