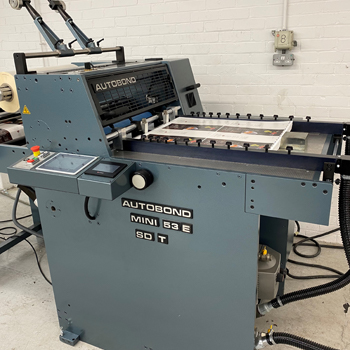

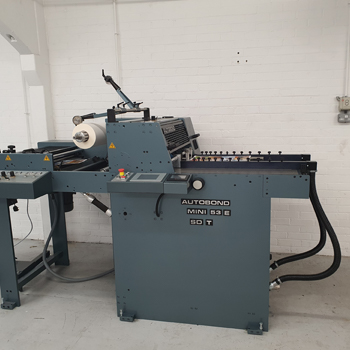

MINI 53 SD-T

Autobond offers a wide range of heat laminators. The Autobond Mini 53 SD-T is a quick make-ready, thermal laminator designed for digital printers and half-size offset printers.
It is an excellent commercial laminator, designed for short to medium-run work. It has a modular design to add options such as a perfector, in-line spot UV coating, or an in-line foiling machine. Please see below for more details on the Mini 53 SD-T thermal laminating machine.
1 or 2 sided, sheet fed, thin film, thermal laminator for short and medium run lengths.
Max sheet size: 53 x 74 cm (20.75” x 29”)
Min sheet size: 32 x 22.5 cm (12.5” x 9”)
Max speed: 45 m/min (150 ft/min)
150 gsm (100 lb text) to 650 gsm (24 pt)
Quick make-ready
Easy operation
Small footprint (10’ x 4’)
Heavy-duty build quality

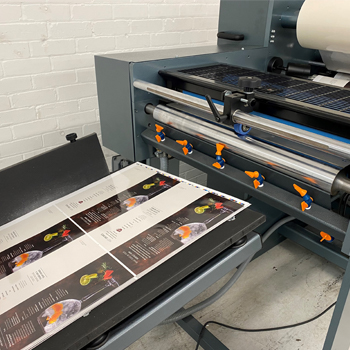

FEEDER

• Heidelberg-Stahl suction drum
• Bottom separation, continuous run, top-loading
• Air inflates the sheets from the sides, allowing them to float on a bed of air
• Operator replenishes sheets on the run, thus providing a continuous feed

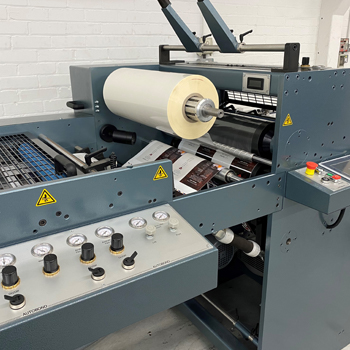

LAMINATOR

•     Water-heated chrome laminating roller (or optional electrically heated)
•     Digital temperature control up to 135°C (275°F)
•     Rubber counter-pressure roller
•     Pneumatic nip pressure up to 6 metres tonnes
•     Film mounted on a quick-change inflatable air-shaft
•     Film roll slitting and perforating mechanisms
•     Pneumatic clutch ensures precise film tension

SHEETER

•     Integral bump/burst separator runs in-line
•     Features include an adjustable pro-active, anti-curl bar, secondary perforating mechanism, and in-feed hold rollers with a pneumatic clutch to maintain web tension
•     Delivery into vibrating wheeled jogger table with under-sheet adjustable air control

OPTIONAL FEATURES

PERFECTOR

Note: Perfector available only on water heated Mini 53 SD-T (not optional electric heated)

• Sheets are laminated top and bottom in one pass
• Rubber counter-pressure roller becomes water-heated
• Additional heated roller, quick-change inflatable air-shaft, and perforating mechanism for 2nd roll of film

MAGNET

•     Lamination of PSA magnet roll onto the bottom of sheets
•     Cantilevered air-shaft for quick mounting of magnet roll
•     Inflatable air-shaft for automatic take-up of release liner backing paper
